‹ Home › Inventory › FXBB 2026 Street Bob®

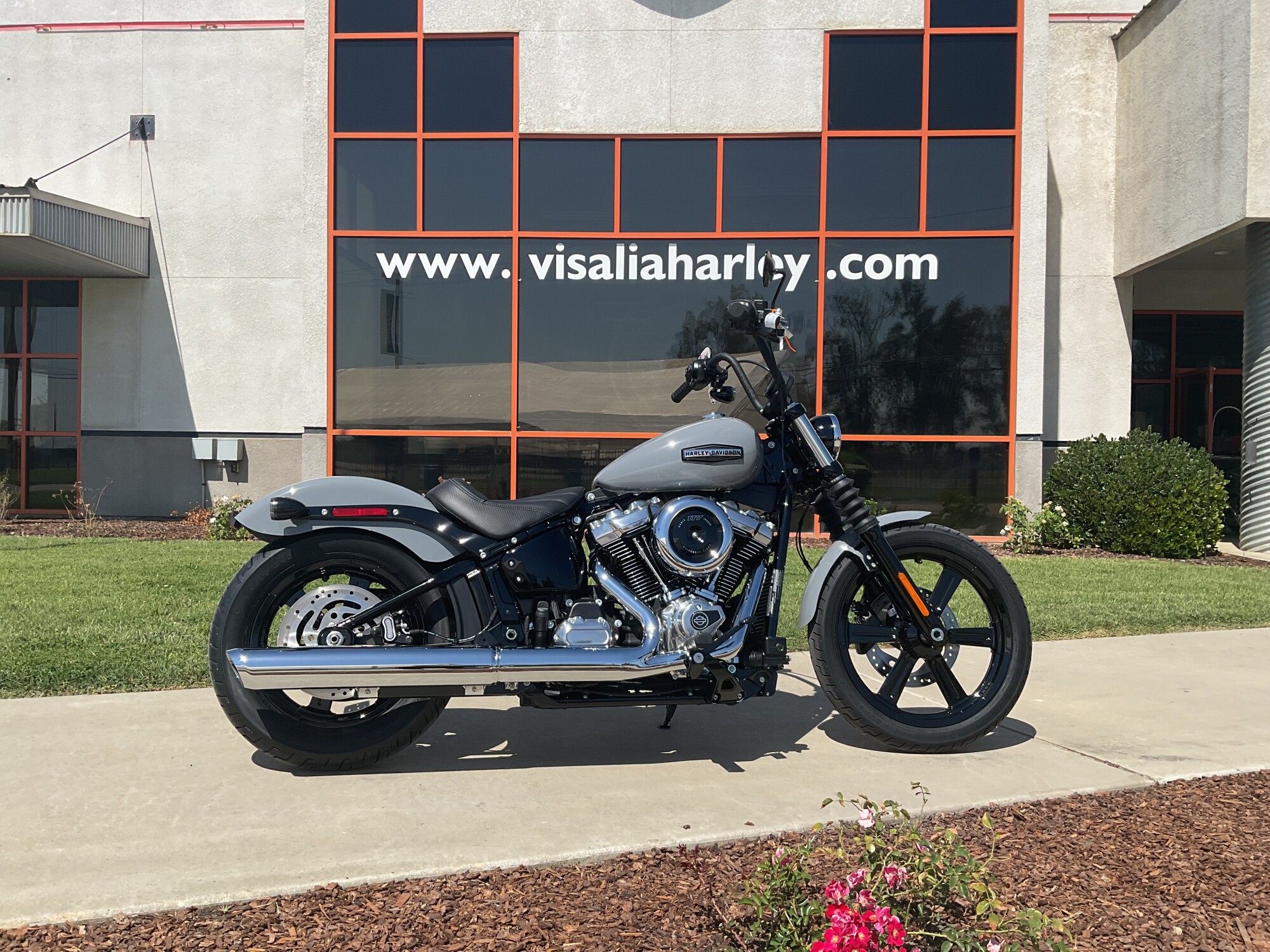

The 2026 Street Bob is lean by design and loaded up where you need it. With a Milwaukee-Eight 117 motor, torque-tuned 2-into-1 exhaust, updated 4” analog gauge, USB-C charging, and standard Rider Safety Enhancements, it leaves the frills on the factory floor but doesn’t skimp.

Specifications

Dimensions

add remove
- Length:

  91.3 in
- Seat height, unladen:

  26.8 in
- Ground clearance:

  4.9 in
- Rake (steering head):

  30
- Trail:

  6.2 in
- Wheelbase:

  64.2 in
- Tires, front specifications:

  100/90B19,57H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel Capacity:

  3.5 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  622 lbs
- Weight, in running order:

  646 lb
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  120.2 ft-lb
- Engine torque (RPM):

  2500
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Lean angle, right (deg.):

  28.5
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, front type:

  Black, Annihilator cast aluminum
- Wheels, rear type:

  Black, Annihilator cast aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
